Revit 2014: New Enhancements to Stairs and Railings

Ideate, Inc. is pleased to show a continuation of development for stairs and railings that began in Revit 2013 and continues in Revit 2014. New in 2013 was the assembly of stairs as common components (run, landing, support) with associated handles that allowed them to be resized outside of the sketch mode. There was the addition of placement justifications (left and right) there was new behavior where stairs runs could overlap in the same stair. Railings had a new added handrail and top rail elements with options to extend top rails and handrails, which allowed designers to address ADA standards.

In Revit 2014 there are new justification options – Exterior Support Left and Right for placement of stairs so you can now be pacing the stringer face and not the inside width of the stair.

Revit 2013

Revit 2014

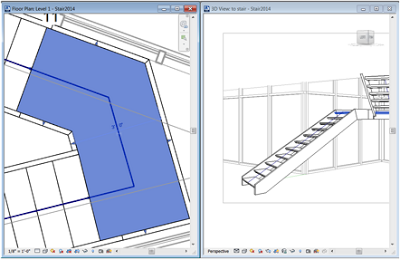

There is also a new control on the stair landing which allows you to easily adjust the connection between run and landing.

Revit 2013

Revit 2014

Revit 2014

There is also the restored ability to edit temporary dimension for the components which was not possible in the 2013 release.



Stairs got a lot easier in the 2013 product and that development has continued in this 2014 release.

Separate components with their own properties makes it possible to customize each component and the new enhancements let you continue to work on the components – with less need to resort to the embedded sketch, although that option remains and allows for custom shapes for stringers, treads, railings and handrails.
